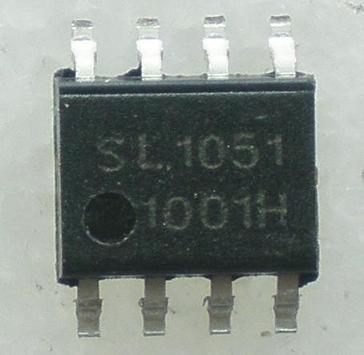

SL1051

SL1051 is a single Lithium-Ion or Lithium-Polymer cell linear battery charger which is designed for compact and cost-sensitive handheld devices. It combines charge status indication,charge termination, battery temperature monitoring, and high accuracy current and voltageregulation in a SOP-8 package.
SL1051 charges the battery in three modes, precharge, constant current, constant voltage. If
the battery voltage is below the precharge threshold VO(MIN), the SL1051 precharges the battery
with a lower conditioning current. After precharge, the SL1051 applies a constant current to the
battery. An external sense-resister sets the charge current. The constant voltage mode continues
until the battery reaches the regulation
The battery temperature is continuously measured by an external thermistor through the TS
pin. SL1051 inhibits charge until the temperature is within the range defined by users.
Features
ı For Single Lithium-Ion or Lithium-Polymer Cell Battery Pack 4.2V
ı A Few External Components are Required
ı Precharge, Constant Current, Constant Voltage Modes
ı Battery Temperature Monitor
ı Charge Status Indication
ı Automatic Battery Recharge
ı Charge Termination Detect
ı Auto Low Power Sleep Mode when VDD Power is removed
ı MSOP-8 Package
ı RoHS Compliant and 100% Lead (Pb)-Free
Applications
ı Digital Cameras
ı PDAs
ı Cellular Phones
ı Information
